Bosscreen™
Groundglasses for professional cameras
Contents
|
|
|
|
|
|
|
|
|
|
|

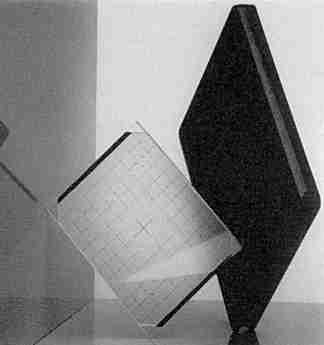

Bosscreen™ is manufactured to the exact dimensions of the existing groundglass so that replacement is very simple. The sides are supplied with black tape so that the projection surface is placed exactly right. This tape also functions as a cushion. Therefore the glass will not touch the metal. Mounting the screen should be done evenly and care should be taken not to tighten the screws too much. |
|
|
The grid lines are positioned in accordance with the original groundglass of the respective camera manufacturer. On some types of 9 x 12 (4" x 5") glasses, marks are placed which correspond with the 6 x 9 rollfilmcassette size. |
|
|
Specifically the larger Bosscreens™ have transparent corners. By this, vignetting can be spotted, caused for example by extreme use of the compendium. |
|
|
Under normal circumstances the groundglass will probably outlast your camera. However, pay attention to the following:
Cleaning should be done with a soft cloth with a little glasscleaner or simply with soap and lukewarm water. |
|
|
Every Bosscreen™ is packed separately in a styropor inlay in a cardboard box and suitable for shipment by mail in quilted envelopes. |
|
|
|
6x6 |
6x7 |
6x9 |
6x12 |
9x12 4"x5" |
13x18 |
18x24 8"x10" |
|
|
Arca |
|
|
|
|
þ |
|
|
|
|
Cambo |
|
|
þ |
|
þ |
þ |
þ |
|
|
Horseman |
|
|
þ |
|
þ |
|
|
|
|
Inka |
|
|
|
|
þ |
|
|
|
|
Linhof |
|
|
þ |
|
þ |
þ |
|
|
|
Sinar |
|
|
þ |
|
þ |
þ |
þ |
|
|
Toyo |
|
|
|
|
þ |
þ |
þ |
|
|
Silvestri |
|
þ |
þ |
þ |
|
|
|
|
|
Plaubel |
|
|
|
|
þ |
þ |
þ |
|
|
Rollei |
þ |
|
|
|
|
|
|
|
|
Wista |
|
|
|
|
þ |
|
|
|
|
Prices of Bosscreens depend mainly upon their sizes. The table below indicates prices for all main Bosscreen formats. Bosscreens of different dimensions can be manufactured. If your screen size is not listed in the table below, please contact us for a specific offer. All prices are excl. (19%) VAT, excl. Bank-/shipping costs |
|||
|
Dimensions |
Price [Euro] |
||
|
Inches |
Centimetres |
||
|
- |
6 x 6 |
120.00 |
|
|
6 x 7 |
|||
|
6 x 8 |
|||
|
6 x 9 |
|||
|
6 x 12 |
|||
|
6 x 17 |
140.00 |
||
|
7 x 6 |
120.00 |
||
|
9 x 6 |
|||
|
4 x 5 |
9 x 12 |
||
|
5 x 7 |
13 x 18 |
150.00 |
|
|
8 x 10 |
18 x 24 |
190.00 |
|
|
10 x 12 |
24 x 30 |
220.00 |
|
|
11 x 14 |
28 x 35.6 |
250.00 |
|
|

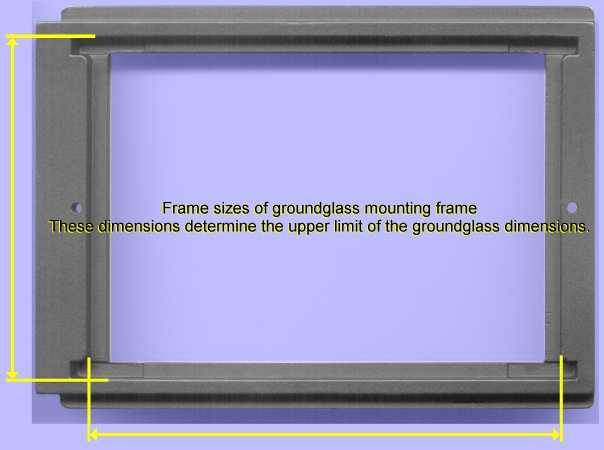

When ordering a Bosscreen it is sometimes sufficient to mention the camera's manufacturer and camera type. However there are so many different types of cameras that it proves impossible to keep track of all relevant data concerning dimensions and tolerances of the corresponding groundglasses. Therefore it is best to supply us with
Naturally we need your (company) name, addresses for shipment and invoice, following contact information (if applicable):
Please send this information and any question you might have to our stabilix representative. |

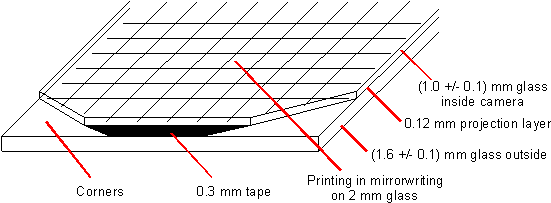

Outer (2mm) glass layer can be ordered oversized (in height and/or width) than inner (1mm) glass layer
