Quartz (crystals and oscillators)

Stabitech provides quartz crystals and oscillators in a wide range in both frequency and holder types.

Apart from crystals and oscillators with standard frequencies we also manufacture specials ranging in frequency from 5 kHz to 180 MHz.

We also produce high stability devices and frequency sources such as:

  • PXO,
  • VCXO,
  • TCXO and
  • VCO

On demand we comply with military specifications (MIL-C-3098, MIL-C-10405, DEF-5271) or special wishes of customers.

We also manufacture special microbalances known as QCMs. These devices are used in vacuum applications to monitor contamination. In close relation to these devices we produce ultra-sensitive temperature transducers. The detection threshold of these TIC-devices is approx. 10-6 °C.

Back to contents

More...



Bosscreen™

Bosscreen™ is a patented viewing screen that is produced by melting a thin layer of wax and paraffin between two layers of colourless, optical clear glass. The result: a ground glass with a very high light transmission and an optimal clearness and contrast. Gridlines are placed between the two glasses. Ideal for making the right composition.

Back to contents

More...



Glasscreen™ for video and dia transfer

Glasscreen™ is a product manufactured by Stabitech to be used for dia and video transfer onto other imaging systems, such as photo cameras, video cameras and digital cameras. Due to the absence of any graininess, the image that is projected has a uniform brilliance. This screen is unsurpassed in terms of light spread and image sharpness.

Back to contents

 More...



Mirrors

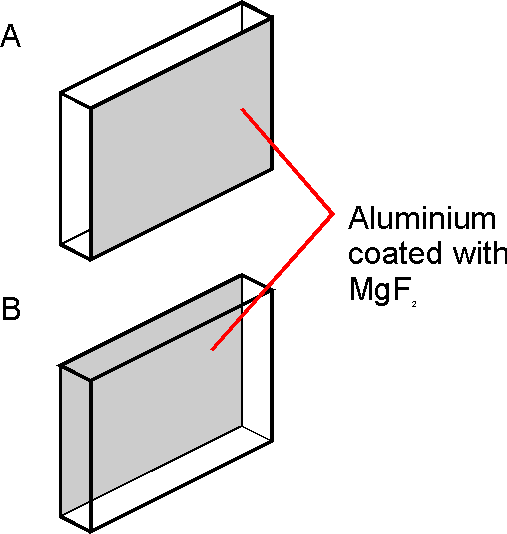

Stabitech manufactures mirrors of two types:

 Front-face mirrors (figure A)

 Back-face mirrors (figure B)

A third special type of mirror is the beamsplitter.

By standard our mirrors are covered with a reflective aluminium layer and coated with MgF2. Minimum quantity 1 piece.

When ordering please specify the following parameters:

 Thickness of the glass medium

 It's length and width (or diameter for circular mirrors)

 Flatness in lightbands

Back to contents

More...



Ground glasses

Ground glasses are used in (professional) large format photography. They are also known as Ground glass diffusers. These glasses are available as clear and printed types and come in many different shapes and sizes. Our ground glasses are GROUND, not sandblasted or chemically etched. By default we use a 600-grit grinding powder.

In general all types of ground glasses can be manufactured up to sizes of 230 x 270 mm.

Back to contents

More...



Precision optics (lenses, prisms, etc.)

The optical department is fully equipped to produce small, medium or special single runs of optical parts to the customer's design. Grinding, lapping and polishing of optical, Pyrex and borosilicate glass is also carried out to meet customer's requirements.

We can saw, mill, grind and do planetary lapping on all glass, hard glass and quartz products in special shapes with high accuracy.

We manufacture:

 Aspheric Lenses

 Achromatic lenses

 Biconcave Lenses

 Biconvex Lenses

 Prisms

 Filters

 Mirrors

 Flats

 Windows

Back to contents



Coatings and vacuum applications

High vacuum coatings of pure metals such as aluminium, silver, gold, and copper can be applied to a variety of substrates, mainly glass.

Anti-reflection coatings of magnesium fluoride (MgF2) and protective layers of silicon mono oxide (SiO) can be provided.

Back to contents

Ordering

When ordering you can contact us by phone, fax or e-mail. If so desired we can send you an offer for preferred quantity and specifications. Please supply us with the type of product you wish to order and the specifications required.

Shipment costs for small packages below 2 kg are listed below. For heavier shipments please inquire for special fees.

The Netherlands

Shipment/Bank costs for deliveries to locations within The Netherlands are 7.50 Euro (excl. VAT)

Europe

Shipment/Bank costs for deliveries to locations within Europe are 15 Euro (excl. VAT)

Outside Europe

Shipment/Bank costs for deliveries to locations outside Europe are 20 Euro (excl. VAT)



PAYMENT

Unfortunately we can not accept payment by credit card. This type of payment is too involving, so we must insist upon other methods of payment. We encourage the customer to pay by wire transfer, international money order, traveller checks or cash (Euro's).

Back to contents

Stabitech History

Stabitech a brand new Company that continues the activities of Stabilix BV

Stabitech a new name for a company that ensures quality to its customers at low cost. Continual research into improving our products will made Stabitech a well known name world-wide.

Nowadays we focus on specials for quartz crystals and oscillators as well as glass screens and Bosscreens™ for photography, coatings on glass or other types of substrates and special precision optics e.g. lenses for medical applications.
